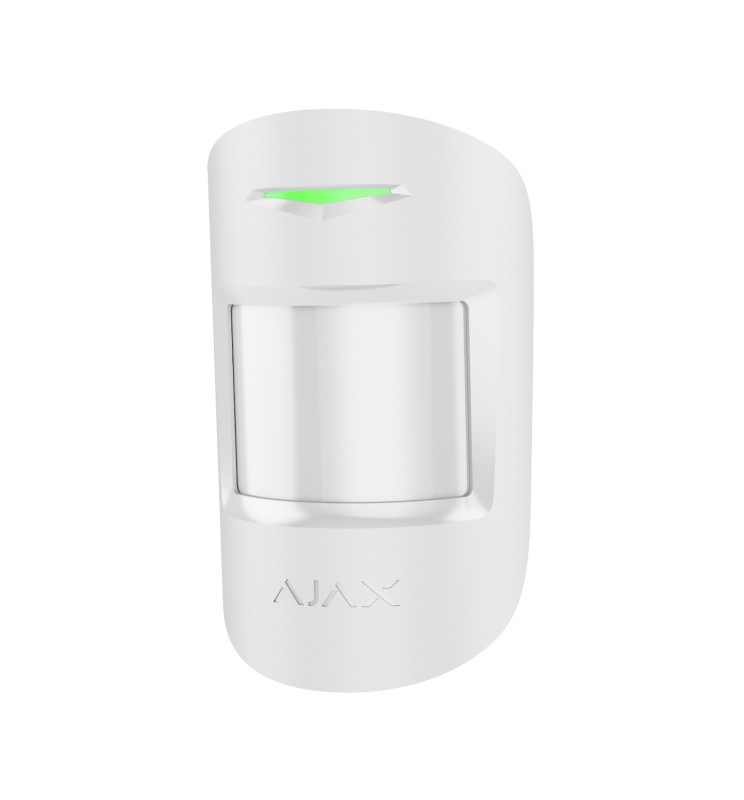

Ajax Rilevatore di movimento IR wireless Superior White

Tech specs

Superior MotionProtect Jeweller

Wireless IR motion detector. Superior edition

Superior MotionProtect Jeweller

Device compatibility

Communication

 Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

Two-way communication.

Advanced sabotage protection.

Block encryption featuring a dynamic key.

Instant notifications.

Remote configuration in the Ajax apps.

Learn more

Frequency bands

868.0–868.6 MHz

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and noise interference.

Radio signal modulation

GFSK

Radio signal range

up to 1,700 m

Between detector and control panel (or range extender) in an open space.

Calculate the radio signal range at the facility

Encrypted communication

All the data stored and transmitted are protected by block encryption with a dynamic key.

Frequency hopping

Radio communication uses frequency hopping to prevent interception and jamming.

Learn more

Detection

Sensitive element

PIR sensor

Motion detection distance

up to 12* m

When installed at the height of 2.4 m.

* — 10 m according to INCERT (with high sensitivity level)

Motion detection angles

horizontal: 88.5°

Motion detection speed

from 0.3 to 2 m/s

The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.

Sensitivity

3 levels

Adjusted by PRO or user with admin rights in the Ajax app.

Pet immunity

weight:up to 20 kg

height:up to 50 cm

Learn more

False alarm prevention

SmartDetect

Software algorithm.

Learn more

Temperature compensation

Effective motion detection at temperatures from −10 °C to +40 °C

Learn more

ttx

ttx

Recommendations

It is recommended to install the detector at a height of 2.4 m.

The device is designed for indoor use only.

Sabotage protection

Tamper alarm

Notifications on attempts to detach the detector from the surface or remove it from the mounting panel.

Learn more

Holding screw

to secure the detector on SmartBracket

Protection against spoofing

device authentication

Communication loss detection

after 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Learn more

Power supply

Battery

1 × CR123A

Pre-installed.

Type

Type C

Calculated battery life

up to 5 years

Detector’s operating voltage range

2.1−3.3 V⎓

Detector’s nominal operating voltage

3 V⎓

Quiescent detector’s current consumption at nominal voltage

0.019 mA

Maximum detector’s current consumption at nominal voltage

2.75 mA

Full capacity

1,600 mAh

Low battery voltage

2.5 V⎓

Low battery recovery voltage

2.7 V⎓

End of life battery voltage

2.1 V⎓

Device is switched off.

End of life battery capacity

300 mAh

Manufacturer

Panasonic

Enclosure

Dimensions

110 × 65 × 50 mm

Weight of the white device

97 g

Weight of the black device

88 g

Operating temperature range

from −10 °C to +40 °C

Operating humidity

up to 75%

Protection class

IP50, IK04

Colors

Black

White

Complete set

Superior MotionProtect Jeweller

SmartBracket mounting panel with holding screw

CR123A battery (pre-installed)

Installation kit

Quick start guide
