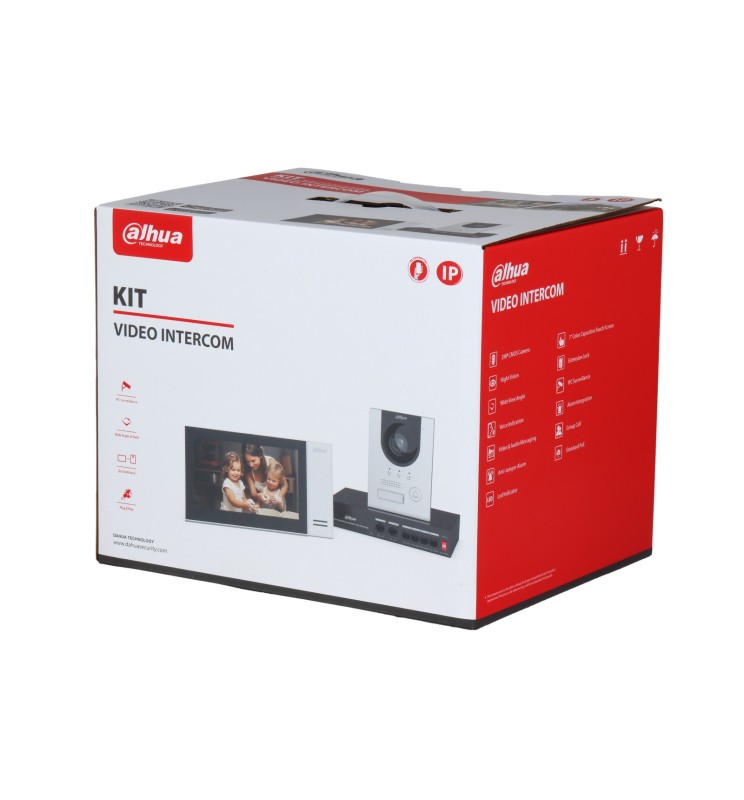

Dahua Video Intercom KIT DHI-KTP01L(S)
LOG IN PER ACCEDERE AI PREZZI
DHI-KTP01L(S)
Video Intercom KIT
- DHI-VTO2201F-P + DHI-VTH2421FW-P + DH-PFS3006-4ET-36
- 7-inch Screen VTH
- Metal VTO
- PoE Connection
- App Management
Acquista in totale sicurezza
Spedizione in 24h
Consegna express disponibile
Restituzioni entro 14 giorni
Continuando a navigare su questo sito web, accetti il nostro utilizzo dei cookie e dei tuoi dati personali secondo il GDPR dell'UE.
Vedi Dettagli
Nostra Privacy Policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 Cosa sono i cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 Come usiamo i cookies
Utilizziamo i cookie per diversi scopi. Alcuni cookie sono necessari per motivi tecnici; alcuni consentono un'esperienza personalizzata sia per i visitatori che per gli utenti registrati; e alcuni consentono la visualizzazione di pubblicità da reti di terze parti selezionate.
-
3 Cookie di controllo
I visitatori potrebbero voler limitare l'uso dei cookie o impedirne completamente l'impostazione. Se disabiliti i cookie, tieni presente che alcune delle funzionalità del nostro servizio potrebbero non funzionare correttamente
-
4 Informazioni che collezioniamo
Raccogliamo informazioni su di te solo se abbiamo un motivo per farlo, ad esempio per fornire i nostri servizi, per comunicare con te o per migliorare i nostri servizi.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
DHI-KTP01L(S)
System(VTO)
Main Processor
Embedded Processor
Operating System
Embedded Linux Operation System
Button Type
Mechanical
Interoperability
ONVIF; CGI
Network Protocol
SIP; TCP; RTP; UPnP; P2P; DNS; UDP; RTSP; IPv4
Basic(VTO)
Camera
1/2.9" 2 MP CMOS
Field of View
H: 168.6°; V: 87.1°; D: 176.7°
WDR
120 dB
Noise Reduction
3D NR
Video Compression
H.265; H.264
Video Resolution
Main stream: 720p; WVGA; D1; CIF
Sub stream: 1080p; WVGA; D1; QVGA; CIF
Video Frame Rate
25 fps
Video Bit Rate
256 kbps to 8 Mbps
Light Compensation
Auto IR
Day/Night
Auto(ICR)/Color/B/W; Color/B/W
Audio Compression
G.711a; G.711u; PCM
Audio Input
1 channel
Audio Output
Built-in speaker
Audio Mode
Two-way audio
Audio Enhancement
Echo suppression/digital noise reduction
Audio Bit Rate
16 kHz, 16 bits
Function(VTO)
Communication Mode
Full digital
Unlock Mode
Remote
Leave Videos
Yes (SD card is inserted in the indoor monitor or door station)
Storage
Supports Micro SD card (up to 256 GB)
Web Configuration
Yes
Performance(VTO)
Casing Material
Aluminum
Port(VTO)
RS-485
1
Alarm Output
1
Power Output
1 port (12 V, 600 mA)
Exit Button
1
Door Status Detection
1
Lock Control
1
Network Port
1 × RJ-45 port, 10/100 Mbps network port
Alarm(VTO)
Tamper Alarm
Yes
General(VTO)
Appearance Color
Silver
Power Supply
48 VDC, 0.4 A;
PoE (802.3af/at)
Power Adapter
Optional
Installation
Surface mount (The surface mount kit comes with the surface mount bracket)
Certifications
CE
Product Dimensions
200.0 mm × 98.0 mm × 35.4 mm (7.87" × 3.86" × 1.39")
Protection
IK08, IP65 (Silicone sealant is needed, see the quick start guide)
Operating Temperature
–40 °C to +60 °C (–40 °F to +140°F)
Operating Humidity
10%–95% (RH), non-condensing
Operating Altitude
Beneath 3000 m (9842.52 ft)
Operating Environment
Outdoor
Power Consumption
≤5 W (standby), ≤7 W (working)
Gross Weight
692 g (1.53 lb)
Storage Humidity
30%–75% (RH)
Storage Temperature
0 °C to +40 °C (+32 °F to +104 °F)
System (VTH)
Main Processor
Embedded Processor
Operating System
Embedded Linux Operation System
Basic (VTH)
Screen Type
Capacitive Touchscreen
Display Screen
7" TFT
Screen Resolution
1024 (H) × 600 (V)
Audio Compression
G.711a; G.711u; PCM
Audio Input
1-channel all-direction microphone
Audio Output
Built-in 1.5 W loudspeaker
Audio Mode
Two-way audio
Audio Enhancement
Echo suppression/digital noise reduction
Audio Bit Rate
16 kbps
Function (VTH)
Communication Mode
Full digital
Information Release
Supports to receive and view notifications issued by center
Leave Videos
Yes
DND Mode
Do not disturb period can be set
Number of Extensions
9
Storage
Embedded 8 GB card
Port (VTH)
Alarm Input
6 channel (switch quantity)
Alarm Output
1 channel
Network Port
1 × RJ-45 port
Alarm(VTH)
SOS Alarm
Yes
Performance(VTH)
Casing Material
PC + ABS
General (VTH)
Appearance Color
Black
Power Supply
12 VDC, 1 A, PoE
Installation
Surface Mount
Certifications
CE; FCC; UL
Accessory
Default bracket Default alarm cable
Product Dimensions
119.6 mm × 221.5 mm × 23.5 mm (4.71" × 8.72" × 0.93")
Operating Temperature
-10°C to +55°C (+14°F to +131°F)
Operating Humidity
10%-95% (RH), non-condensing
Operating Altitude
0 m–3,000 m (0 ft–9,842.52 ft)
Operating Environment
Indoor
Power Consumption
≤4 W (standby), ≤6 W (working)
Gross Weight
0.35 kg (0.77 lb)
Storage Temperature
0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity
30%–75% (RH), non-condensing
Storage Humidity
30%–75% (RH)
System(Networking Device)
Main Processor
Embedded Processor
Port(Networking Device)
Network Port
4 × PoE ports with 10/100 Mbps Base-TX
2 × uplink ports with 10/100 Mbps Base-TX
General (Networking Device)
Appearance Color
Black
Power Supply
Built-in power supply: 100–240 VAC
Certifications
CE; FCC
Product Dimensions
194.0 mm × 108.1 mm × 35.0 mm (7.64" × 4.26" ×1.38")
Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
10%–90% (RH), non-condensing
Power Consumption
Idling: 0.5 W; Full load: 36 W
Gross Weight
1.11 kg (2.15 lb)
DHI-KTP01L(S)
Scheda tecnica
- Tipologia
- Kit videosorveglianza
- Batteria inclusa
- No/Non necessaria
