Nuovo

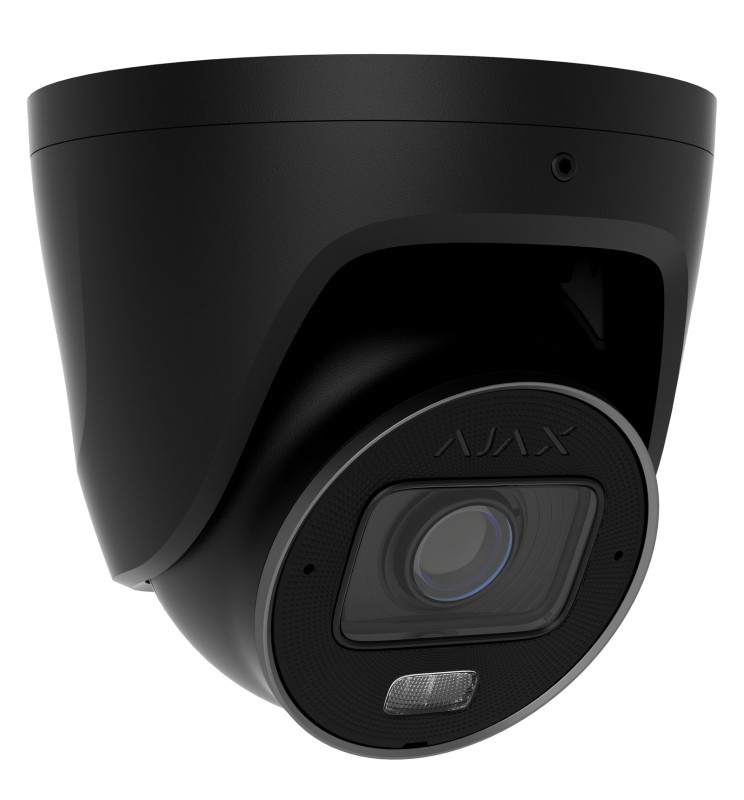

Ajax Telecamera Turret Hlvf 8Mp Turretcam Nero

Name: Ajax Telecamera Turret Hlvf 8Mp Turretcam Nero
Brand: AJAX
SKU: AJ-TURRETCAM-HLVF-8M-BLACK

Wired AI-powered security IP camera with a 2.8–12 mm motorized varifocal lens, hybrid illumination, True WDR, audio and alarm inputs/outputs, microphone, and PoE/12 V. For outdoor and indoor use.

Riferimento: AJ-TURRETCAM-HLVF-8M-BLACK

Aggiungi alla lista dei desideri

SU ORDINAZIONE

Acquista in totale sicurezza

Spedizione in 24h

Consegna express disponibile

Restituzioni entro 14 giorni

Continuando a navigare su questo sito web, accetti il nostro utilizzo dei cookie e dei tuoi dati personali secondo il GDPR dell'UE. Vedi Dettagli

Accetto

Nostra Privacy Policy

Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.

1 Cosa sono i cookies?

Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
2 Come usiamo i cookies

Utilizziamo i cookie per diversi scopi. Alcuni cookie sono necessari per motivi tecnici; alcuni consentono un'esperienza personalizzata sia per i visitatori che per gli utenti registrati; e alcuni consentono la visualizzazione di pubblicità da reti di terze parti selezionate.

Leggi la nostra politica sulla privacy completa
3 Cookie di controllo

I visitatori potrebbero voler limitare l'uso dei cookie o impedirne completamente l'impostazione. Se disabiliti i cookie, tieni presente che alcune delle funzionalità del nostro servizio potrebbero non funzionare correttamente
4 Informazioni che collezioniamo

Raccogliamo informazioni su di te solo se abbiamo un motivo per farlo, ad esempio per fornire i nostri servizi, per comunicare con te o per migliorare i nostri servizi.

We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.

We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.

Accetto No, non accetto

Descrizione
Dettagli del prodotto

IMAGE SENSOR

8 MP CMOS, 1/2.8" type

LENS FOCAL LENGTH

2.8–12.0 mm

MAXIMUM APERTURE

f/1.6

LENS IRIS TYPE

fixed

LENS FOCAL TYPE

varifocal

FIELD OF VIEW

horizontal: 31°–111°

vertical: 17°–57°

diagonal: 35°–135°

MAXIMUM ILLUMINATION DISTANCE

• white LED: up to 40m up to 131 ft
• IR LED: up to 60 m up to 196 ft
Intelligent lighting control automatically adjusts the intensity of IR and white LEDs in real time to prevent overexposure. This ensures clear visibility of objects at varying distances, both near and far, in low-light conditions.

MINIMUM ILLUMINATION

color: 0.005 lx

B/W: 0 lx

SIGNAL-TO-NOISE RATIO (SNR)

more than 52 dB

RESOLUTION

• 8 MP (3840 × 2160)
• 6 MP (3072 × 1728)
• 5 MP (2944 × 1656)
• 5 MP (2880 × 1620)
• 5 MP (2688 × 1520)
• 5 MP (2592 × 1944)
• 4 MP (2560 × 1440)
• 3 MP (2304 × 1296)
• 2 MP (1920 × 1080)
• 0.6 MP (1024 × 576)

FRAME RATE

up to 25 fps

IMAGE ROTATION

0°, 90°, 180°, 270°

VIDEO CODEC

H.265, H.264

DYNAMIC RANGE

120 dB (True WDR)

STORAGE

microSD

Camera supports microSD cards up to 256 GB. The memory card must be Class V30 or faster. The card is not included in the complete set.

BUILT-IN MICROPHONE

1

With the corresponding settings applied, the camera can record audio at the scene.

AUDIO CODEC

G.711 µ-law, G.711 A-law, G.726, G.722

MOTION DETECTION

The camera detects motion using software-based image frame analysis.

AI OBJECT DETECTION

People

Pets

Vehicles

Line-crossing

PORT

1 × RJ45 self-adaptive Ethernet (10/100 Mbps)

PROTOCOL

HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS

INTEROPERABILITY

ONVIF (Profile S/T*)

Ajax cameras and NVRs can be integrated into third-party video management systems (VMS).

* Profile T is supported for basic streaming and configuration. Advanced features such as metadata, event handling, or edge recording may not be available.

LINES FOR THIRD-PARTY DEVICES

2

ALARM IN TYPE

NO, NC

Configured in Ajax apps.

ALARM OUT OPERATING RANGE

48 V⎓, 300 mA

LINES FOR THIRD-PARTY DEVICES

2

AUDIO IN TYPE

external microphone input

Supports active microphones with a built-in preamplifier.

AUDIO IN SETTINGS

gain

enable/disable

Configured in Ajax apps.

AUDIO OUT TYPE

speaker output

Supports connection of an external speaker (min. 3 W, ≥ 4 Ω). When an external speaker is connected, the internal one is disabled.

VIDEO TRANSMISSION

JetSparrow

Fast and encrypted peer-to-peer technology developed by Ajax Systems.

FOCAL LENGTH CHANGE

autofocus

manual focus control

Configured in Ajax apps.

VISUAL VERIFICATION OF SYSTEM ALARMS

Ajax systems allow users to configure a scenario in which Ajax detectors trigger selected cameras to start recording. The recorded event is immediately delivered to the mobile or desktop Ajax PRO app.

PRIVACY

Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators using Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, and device settings in accordance with the owner's preferences.

MTLS

Encrypted connection for data protection.

AUTHENTICATION

via Ajax Cloud

SECURE BOOT

Protection against firmware spoofing.

OTA SIGNATURE VERIFICATION

Secure automatic firmware update.

ACCELEROMETER

Alerts on attempts to move or dismount the camera.

POE STANDARD

802.3at/af (Class 3)

EXTERNAL POWER CONNECTOR TYPE

screw terminal connector (2 pin)

POWER CONSUMPTION

• maximum: up to 12 W
• average: up to 6 W

POWER SUPPLY UNIT

12 V⎓, 1 А

DIMENSIONS

136 × 113 × 136 mm 5.35″ × 4.45″ × 5.35″

WEIGHT

850 g 1.87 lb

OPERATING TEMPERATURE RANGE

from −40 °C to +60 °C from −40 °F to 140 °F

OPERATING HUMIDITY

up to 90%

PROTECTION CLASS

IP67, IK10, IK08

Black

White

TurretCam HLVF (8 Mp)

Installation template

Installation kit

3 screw terminal connectors

Quick start guide
